U1300L/37 Truck Dash Decal Reproduction and Functions

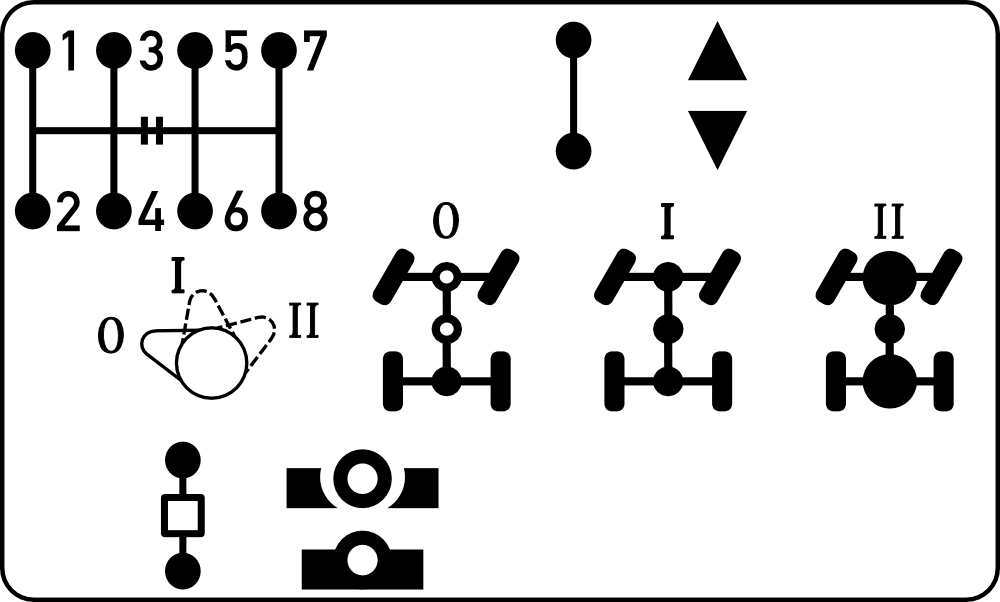

This is reproduction of the decal located on the dash in the square to the left of the shift lights. This decal is from my truck specifically, an ex-feuerwher U1300L/37:

1. Top left is the basic 1-8 shift pattern. My decal has solid circles and no double vertical dash, which I assume is to indicate the air assist from 4th to 5th. Though my truck does indeed have the air assist so I left it in there.

2. The up/down arrows are for the forward/reverse lever.

3. The middle graphics are for the 4WD/locker switch:

4. 0: 2WD
   I: 4WD
   II: 4WD with front and rear lockers engaged

5. The bottom left graphic is the parking brake lever. ( o ) is disengaged.

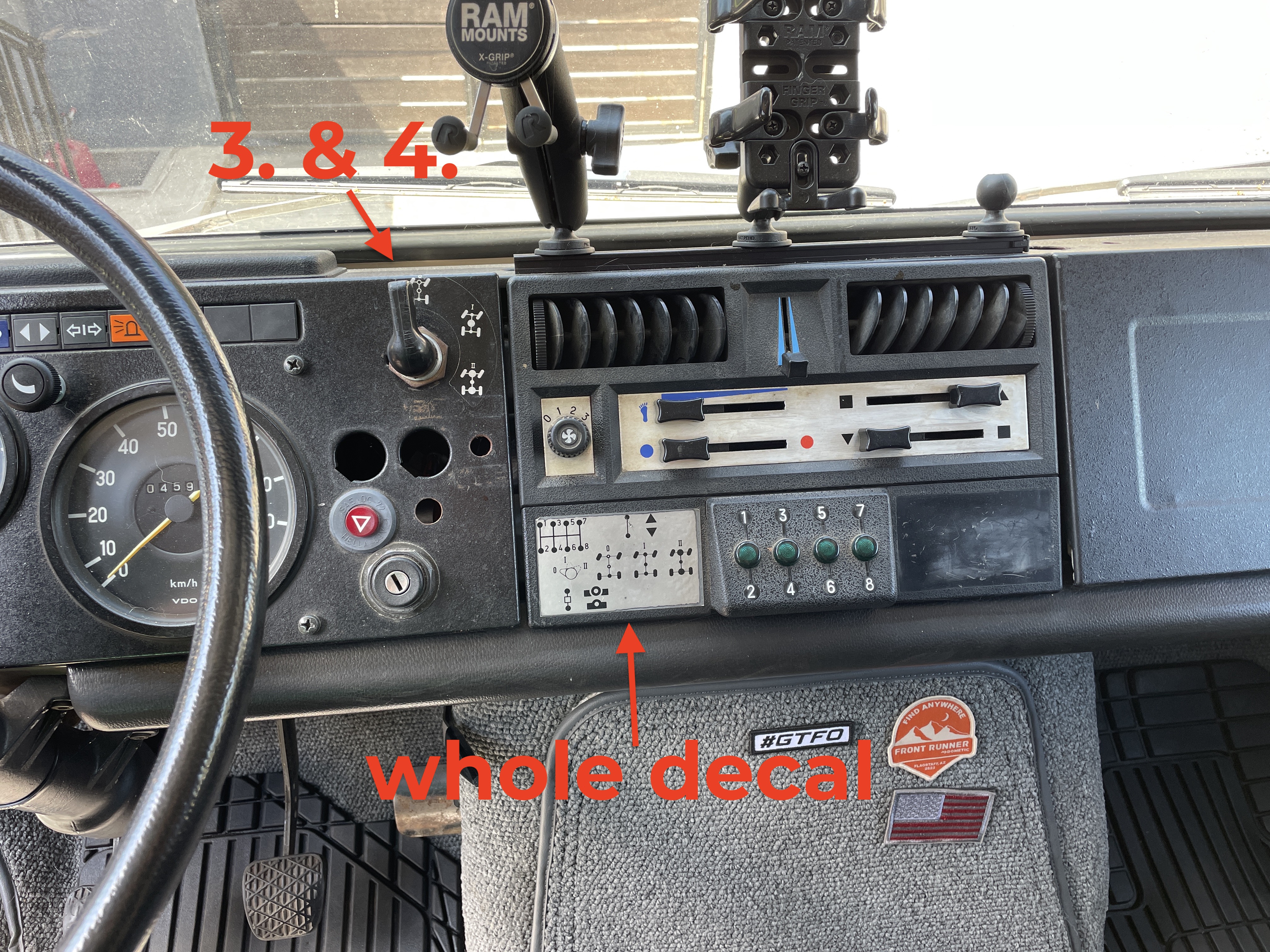

This is the whole dash so you can see where the decal lives. Also noted is where the control is for #3. and #4. from the list above:

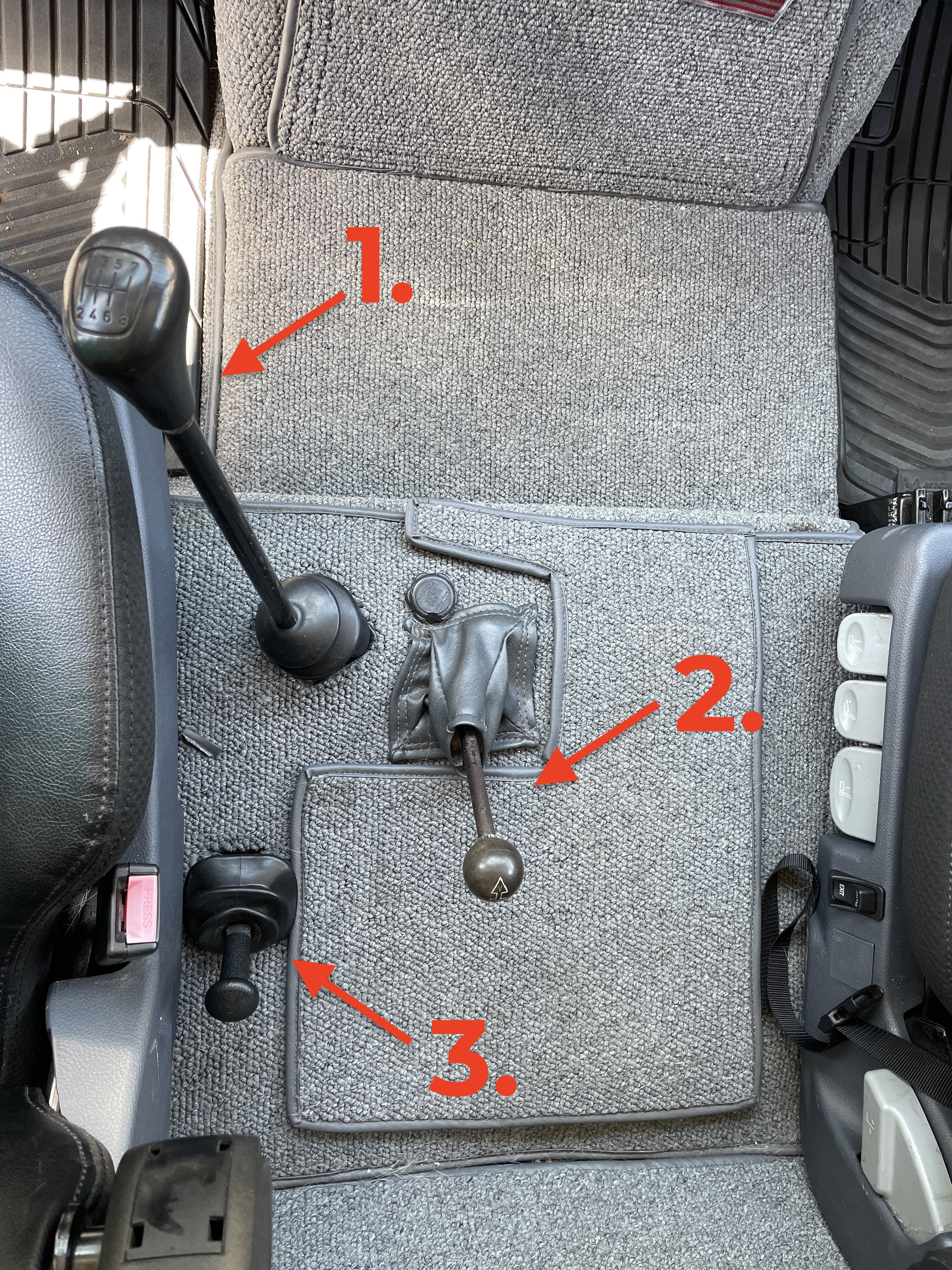

This is the shifters on the floor to the right of the drivers seat with the shifters that correspond to the list above:
